The Curl® Language provides tools to help you
deploy Web applications in multiple natural languages. The only
languages that are fully tested and supported by the Curl Runtime
Environment (RTE) are U.S. English and Japanese. Most languages
that read from left to right can be displayed by Curl applets and
entered in Curl controls. The applet must request the appropriate
font and the font must be available on the system where the applet
is running.
There are two
approaches to Curl multiple language support. For the parts of
your application that consist primarily of text information, where
you are using Curl as a markup language as you might use HTML,
the best approach is to create alternate versions of the files in
each language.
One of the Curl Language's strengths is that you can also use it
as a sophisticated object oriented programming language to develop
interactive applications. This type of use presents a different
translation problem. It is not efficient to duplicate the entire
application in each language. You may use a button labeled
"Submit" hundreds of times in your application, but you do not
want to translate the word "Submit" hundreds of times. The Curl
language provides a localization mechanism to help you solve this
translation problem.
The concept of locale is central to multiple-language deployment
of Curl applications. The
Locale class contains language
and country information used to find appropriate language
resources for the application. Locale also determines how the
applet handles location-specific issues such as formatting dates,
and selecting a grouping character for large numbers. The Curl
RTE uses the name of the locale to find a translation dictionary.
The host locale is the locale set on the system where the
application is running. For example, on Windows systems, you set
the machine's locale with the Regional Options tool in the Windows
Control Panel. The procedure
get-host-locale returns the
host locale. In addition, each application can specify a working
locale. The procedure
get-working-locale returns the
working locale, and the procedure
set-working-locale
changes the working locale.
By default, the working locale is set to the host locale, which
allows the applet to use the appropriate locale without further
action on your part.
Any Curl application contains text that needs to be translated and
text that should be left alone. Text that is part of the user
interface, such as error messages and button labels, needs to be
translated into the end-user's language. Text strings used
internally for purposes such as command identifiers or option
values should not be translated. You need to identify the text
strings in your applet that should be translated and mark them
using one of several expressions provided by the Curl
language. See
Mark Strings
for Translation for information on these markup expressions.
Once you have marked the strings that need to be translated, you
can use a script called
extract-messages.xcurl to process
the source file and write out a file containing the strings you
have marked for translation, with XML markup that the Curl
translation system understands. Your translator edits this message
file and adds translations for each message. See
Translate the Extracted Messages for more
information on this file. The Curl IDE provides the message
extraction script.
You must deploy the translation file along with the applet. At run
time, the applet uses the translation file to find the proper
translation for each string when it displays the string to the
user. You can support multiple locales by providing a separate XML
translation file for each locale.
When your applet is running, the translation file serves as a
translation dictionary. When a string that was marked for
translation is used at run time, the RTE looks up that string in
the dictionary associated with the appropriate locale. If it finds
a translation, it uses the translated text in the application. If
it does not find a translation file for the locale, or does not
find a translation for the string, it uses the original
string. This scheme provides a fall-back action in case a
translation is missing. It also avoids the use of numerical
message identifiers, which can be hard to manage. Another benefit
is that each distinct string is included in the dictionary only
once and only needs to be translated once.
The following list presents the steps you need to take to use the
Curl language translation system:
-
Wrap all application text that should be translated in
lmessage, or the alternate macros
localize and
lformat if appropriate.
-
Use the Curl script
curl://install/ide/translate/bin/extract-messages.xcurl
to generate an initial version of a translation file.
-
Specify the location of a translation resource file for the locale
either in the
manifest or in the
applet declaration or in the
package
declaration for packages.
-
Add text translations to the translation file generated in
the previous step. Make sure the file is located in the
resource directory indicated by the locale information for
the applet.
Each of the following sections discuss one of these steps in
greater detail.
The
lmessage macro provides translated text in an
application. Its simplest form is:
{lmessage original-text}
Where
original-text is your original, untranslated text.
The original text string is the default value returned by
lmessage if it finds no translation, and is the key used to look
up translated text in a
TranslationDictionary. The Curl
runtime generates the
TranslationDictionary from the
information in the translation file specified in the applet or
package metadata. Additional arguments to
lmessage enable
you to supply a key that is different from the original text
string, and to supply comments to the translator.
The macro
lmessage uses the working locale. By default,
this is the same as the host locale. If necessary, an applet can
set the working locale explicitly, see
Specifying the Locale. Additional macros
lformat and
localize are also available.
Once you have marked all the text messages in your application for
translation, run the Curl script
curl://install/ide/translate/bin/extract-messages.xcurl to
generate a skeleton translation file. You must run this script through a
batch file, or directly at a command prompt. The script reads
through all the files in your application, following all
includes. It processes all localization expressions, and puts the
resulting output into the specified file.
This table describes the message extraction command line
interface:
| Syntax: | curl extract-messages.xcurl
[--help] | -o filename file1, file2, ..., filen |
| Where: |
| Option/Argument | Description |
| --help | displays online help for the
extract-messages script. |
| -o | indicates the translation file. Replace filename with the path and name of the file. |
| file1, file2, ..., filen | indicates the Curl source files to process. The script
can accept any number of input files. Replace files with the paths and names of the files. |
|
For example, type the following command on a single line in a
command prompt window to run the message extraction tool on the
Curl source file source-file.curl and put the results in
translation-file.xml.
d:\automated-build-temp\build\win32-atom\bin\curl.exe
curl://install/ide/translate/bin/extract-messages.xcurl
-o translation-file.xml source-file.curl
There are two ways to specify the location of the translation
file for a given locale and originating package (or applet):
- Using a manifest-lookup system
- By adding entries to the appropriate manifest. The default
manifest for a package (see get-default-manifest)
and its delegate manifests will be searched for a translations
entry matching the package and locale.
This technique is described in more detail in
Using Manifests to Locate Translation Files. - Using a file-lookup system
- By specifying resource-directory
and translations-file attributes
in the package and applet declarations for
all packages and applets requiring translation. The resource
directory will be searched for a subdirectory for a matching
locale that contains the specified file.
The file-lookup approach is only used after the manifest-lookup
approach has failed to find the file.
This technique is described in more detail below.
The manifest-lookup technique is the more efficient of the two because it
avoids the cost of searching the file system. It is also allows for more
flexibility in the actual locations of the translation files and other
localizable resources. The main drawback is the need to explicitly add
resource entries to the manifests.
The file-lookup system uses a file path having the following
structure:
resource-directory/locale-directory/translation-file
Each package in your application specifies a resource directory
and a translation file. The name of the locale directory is the
rfc1766
language tag for the locale used by the applet. File lookup uses
the most specific locale directory name that exists.
For example,
if the applet uses United States English, the language tag is
en-US and the translation system looks for a translation
file in this location:
resource-directory/en-US/translation-file
if that locale directory exists,
or the location
resource-directory/en/ translation-file
if
en-US does not exist, but
en does. If no
English translation file exists, the RTE checks for a directory
called
default. If that does not exist, the application
does not build a
TranslationDictionary and localization
expressions like
lmessage return the original,
untranslated text.
As a more specific example, this package declaration:
{package DOC.CHECKBUTTONS,
resource-directory = "resources",
translations-file = "messages.xml"
}
and an applet using the locale "ja" together specify a translation
file in the location resources/ja/messages.xml.

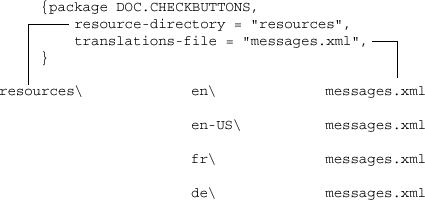

This diagram illustrates the relationship between the specified
names and the resulting path to the translation file.
This illustration shows translation files for US English, all
other English, all French and all German. An applet with the
specified locale en-CA (Canadian English) uses resources\en\messages.xml, one with locale fr-CA
(Canadian French) uses resources\fr\messages.xml.
You can put the entire translation file specification in the
applet declaration.
{applet
locale = "ja",
resource-directory = "resources",
translations-file = "messages.xml"
}
You need to deploy the translation files along with the rest of
the rest of the application. See the IDE documentation for
information on managing deployment.
The translation file is an XML file that uses XML tags to delimit
the original text, the text look-up key, any comment text, and the
translation. Each text element is represented by a
<string></string> tag in the translation file. Inside that tag is
the information for that text, in this format:
<string>
<key></key>
<original></original>
<comment></comment>
<translation></translation>
</string>
The extract messages script generates a <string></string> element,
and the contained <key></key>, <original></original>, and
<comment></comment> elements for each localize expression. Any
elements not present in the source localize expression are
omitted.
For example, these two
lmessage expressions:
{lmessage "Submit"}
{lmessage key = "submit alternate", comment = "Use 'click here' instead.", "Submit"}
Generate these entries in the skeleton translation file:
<translation-dictionary version="1">
<string>
<original>Submit</original>
</string>
<string>
<key>submit alternate</key>
<original>Submit</original>
<comment>Use 'click here' instead.</comment>
</string>
</translation-dictionary>
The translator adds <translation></translation> elements
that contain translations of the original text.
Please note that unless you explicitly specify a different key in
the localization expression in the Curl source code, the original
text is the key used to look up the translation. If you change the
original text in the Curl source file, you must also replicate the
change in the corresponding text in the translation file.
Use the expressions
lformat or
lmessage when you
need to include arguments in the text output.
lformat is a
variant of
format that calls
localize on the
format string. When you use
lformat, you should use rest
argument indexing as described in
format. For example,
for string arguments, the format specifier for the first argument
is
%1!s!, for the second is
%2!s!, and so
forth. The reason is that different languages can require words,
phrases or data values to appear in a different order.
lmessage expands into a call to lformat with Curl
expressions replaced by string arguments to lformat and
%s format specifiers in the format string. The generated
%s format specifiers use rest argument indexing.
{lmessage
This uses lmessage. We're going to include some data values
here. This is int-min: {value int-min}, and this is int-max:
{value int-max}.
}
Produces the following entry in the skeleton translation file:
<string>
<original>
This uses lmessage. We're going to include some
data values here. This is int-min: %1!s!,
and this is int-max: %2!s!.
</original>
</string>
This code:
{lformat
"formatting int-min %1!d!, formatting int-max %2!d!, and a number
%3!.2f!, and another %4!.2f!", int-min, int-max, 22/7, 45/9
}
Produces the following entry in the skeleton translation file:
<string>
<original>
formatting int-min %1!d!, formatting int-max %2!d!,
and a number %3!.2f!, and another %4!.2f!
</original>
</string>
In some specialized circumstances, you need to explicitly set a
working locale for an applet machine, or use the host locale
directly.
Some applications need to set a working locale that is different
from the host locale of the machine running the applet. For
example, consider a system visitors to a museum in a large city
can use to get directions and other information. The machine
running the system is installed in a museum in a specific
country. Its host locale is set to a value appropriate to that
country. Museum visitors using the system want to interact with
buttons and messages in their own language. Such an application
can let the user choose their preferred locale.
If you know that an applet should use a specific locale, you can
specify the working locale by adding a
locale parameter to
the
applet declaration.
There are situations in which you want to use the host locale,
even though the application as a whole has set a different working
locale. The museum application mentioned in the previous section
needs to provide error messages that should be interpreted by local
museum personnel to appear in the local language, not the language
chosen by a museum visitor.
Copyright © 1998-2019 SCSK Corporation.
All rights reserved.
Curl, the Curl logo, Surge, and the Surge logo are trademarks of SCSK Corporation.
that are registered in the United States. Surge
Lab, the Surge Lab logo, and the Surge Lab Visual Layout Editor (VLE)
logo are trademarks of SCSK Corporation.
